AAU918002 - IKON XD

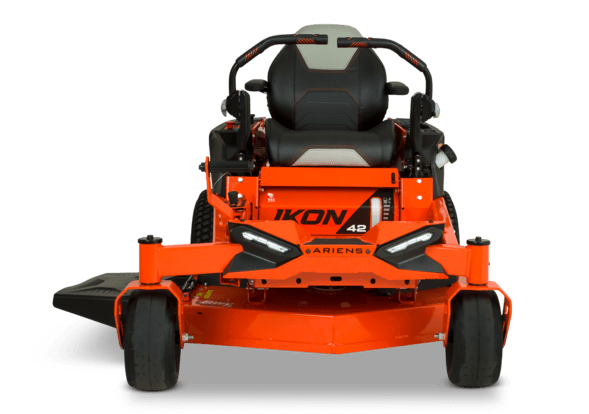

Ariens Ikon 42" Zero-Turn Mower

Durability and power meet function and flexibility.

$9,399.00
(inc. GST)

There are no reviews for this product yet.

Write a review

A compact titan designed to elevate your lawn care game, thats the Ikon 42. With its 42-inch cutting deck, this agile powerhouse effortlessly takes on medium-sized yards, leaving a pristine finish that commands attention. Equipped with a high-performance engine, the Ikon 42" delivers exceptional cutting power, effortlessly taming thick grass and challenging terrains. But it doesn't stop there – the Ikon 42" is all about versatility, offering adjustable cutting heights for a customized mowing experience that suits your lawn's unique needs. The ergonomic seating design ensures comfort and control, allowing you to glide through your yard with ease. With its durable construction and optional advanced bagging and mulching features, the Ikon 42" goes the extra mile in promoting a healthy, vibrant lawn. Upgrade to the Ariens Ikon 42 and embark on a journey of precision, power, and perfection that will transform your lawn into an envy-inducing oasis.

A premium quality Kawasaki FR651 V- twin engine featuring an internally vented carburettor and cast-iron cylinder liners.
Hydro Gear EZT Dual hydrostatic transmission.
13 cutting positions, ranging from 38.1 mm - 114.3 mm.
Dual high intensity LED lights.
Toolless quick adjust control arms.
Fully welded tubular frame.
A 11-gauge 4.5-inch-deep fabricated deck features an optimized airflow design to produce best-in-class cut quality and discharge performance.

Warranty Information

Domestic Warranty
3 Years or 300 Hours Domestic Warranty
Commercial Warranty
3 Years or 300 Hours Commercial Warranty
Hire/Rental Warranty
90 Day Hire / Rental Warranty

Miscellaneous

Blade(s)
3

Dimension Specs

Dry Weight
296.6 kg
Height
1168 mm
Width
1145 mm With chute up
Overall Length
1892 mm

Zero Turn Mower Specs

Ground Speed - Forward
0-11.2 km/ph
Brakes
Control arm integrated
Caster Tyres
11x 6 x 5 smooth tread
Tyres - Drive
20 x 8-8 Tuff tread
Seat
22" Highback with armrests
Construction
Frame 1.50"x 3" steel tubular frame welded
ROPS
ROPS not supplied with unit
Cup Holder
Yes
Deck System
Fabricated ENVY™ deck
Deck Lift
Foot operated
Deck Construction
Fabricated 11-Gauge
Blade Tip Speed
18000 FPM
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
Forged aluminium housing, forged steel shaft with sealed ball bearings
Drive System
Hydro-Gear® EZT® Transaxles
Discharge Chute
High density, rubberised
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine
Kawasaki® FR651V V-Twin
Engine (cc)
726 cc
Horsepower
21.5 hp
Cooling
Air cooled flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 2.0 litres with filter
Air Filter
Single-stage cartridge air filter
Fuel Capacity
13.2 L
Governor
Mechanical

Mowing Deck Specs

Kit - Mulch
Available Accessory

Hydrostatic Drive System Specs

Hydrostatic Drive System
Dual hydrostatic
Drive Cooling
Transmission mounted fans
Pumps
Hydro Gear EZT

Cutting Dimensions

Cutting Widths
42" (1067 mm) cut side discharge
Cutting Height(s)
13 positions, 38 mm - 114 mm
